The clinical value of intelligent quantitative measurement of cervical elastography in predicting spontaneous preterm birth during second trimester

Abstract

Abstract:

Objective:To evaluate the performance of cervical elastographic parameters combined with cervical length(CL) in predicting spontaneous preterm birth(sPTB) during second trimester.Methods:A total of 431 singleton pregnancies who received routine prenatal care in our hospital from 1 Jan 2019 and 31 Dec 2020 were included. Accor-ding to pregnancy outcome, subjects were divided into study group(n=31, preterm birth) and control group(n=400, term birth). CL was measured by transvaginal ultrasound, and the cervical elasticity parameters were obtained by elastography, including elasticity contrast index (ECI), hardness ratio (HR), mean strain at internal ostium (IOS), mean strain at external ostium (EOS), the ratio of IOS to EOS (IOS/EOS ). Differences in above ultrasound parameters between the two groups were analyzed. Receiver operating characteristic (ROC) curve analysis was performed to assess the value of the above ultrasound parameters in predicting sPTB.Results:CL was lower but ECI, IOS,IOS/EOS were higher in the study group than those in the control group. ROC analysis indicated that the AUC of IOS/EOS (0.885 as a cut-off value) for prediction of sPTB was larger than those of any other elastographic parameters, with sensitivity and specificity were 73.8% and specificity of 64.2%, and AUC of CL (23.8 mm as a cut-off ) was 0.717, with sensitivity of 71.4% and 74.2%. The combination of IOS/EOS and CL showed better performance for predicting sPTB, with AUC of 0.771 and sensitivity of 83.3%.Conclusions:Cervical elastography can be used to predict sPTB during second trimester, and showes better predictive performance when combined with CL.

Key words:Ultrasonography,Elasticity imaging techniques,Cervical length,Preterm birth

CLC Number:

R714

HE Biyuan, ZHOU Yuqing, YAO Bingyi, CAO Li, BAO Li. The clinical value of intelligent quantitative measurement of cervical elastography in predicting spontaneous preterm birth during second trimester[J]. Journal of Diagnostics Concepts & Practice, 2021, 20(05): 450-455.

Figures/Tables7

组别	例数（n）	年龄（岁）	检查孕周（周）	体重指数（kg/m²）	辅助生殖技术（例,%）	宫颈手术史[例（%）]
病例组	31	30.5±3.0	24.1±3.1	26.4±3.2	2（6.45）	4（12.9）
对照组	400	30.8±3.1	24.7±3.5	25.6±3.1	17（4.25）	70（17.5）
t或χ²值		3.185	2.320	2.321	0.540 42	0.688 29
P值		0.067 8	0.58	0.317	0.462 3	0.406 7

组别	ECI	HR	IOS	EOS	IOS/EOS	CL（mm）
病例组	4.67	56.89	0.33	0.35	0.98	21.65
对照组	3.75	64.66	0.25	0.33	0.79	30.06
U值	2 805.5	1 816.5	2 666	2 262.5	2 819.5	935.5
P值	0.022	0.231	0.004	0.526	0.003	<0.001

参数	AUC	临界值	灵敏度（%）	特异度（%）
ECI	0.667	5.035	47.6	84.9
HR	0.607	47.53	40.5	88.1
IOS	0.666	0.325	57.1	77.4
EOS	0.542	0.475	23.8	90.6
IOS/EOS比值	0.696	0.885	73.8	64.2

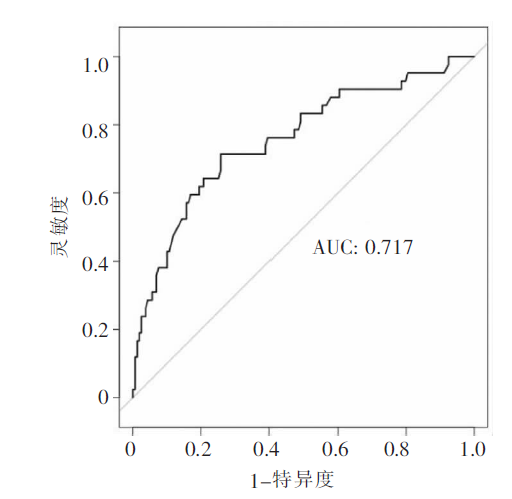

CL	0.717	23.8	71.4	74.2

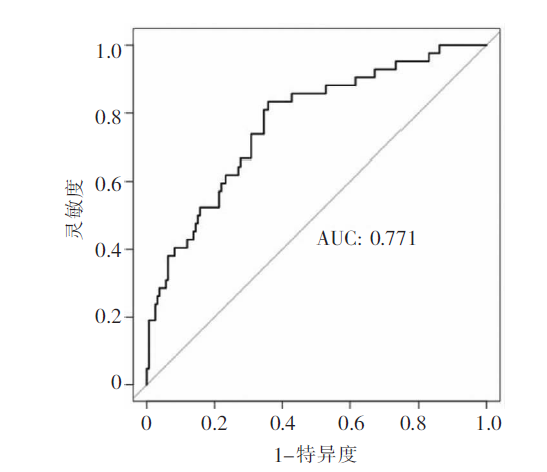

CL+IOS/EOS比值	0.771		83.3	64.2

References24

[1]	杜鹃, 黄贞姣. 围产期泌尿生殖道感染与早产[J]. 中国实用妇科与产科杂志, 2016,32(6):522-525. doi:10.7504/fk2016050110
[2]	Mwaniki MK, Atieno M, Lawn JE, et al. Long-term neurodevelopmental outcomes after intrauterine and neonatal insults: a systematic review[J]. Lancet, 2012,379(9814):445-452. doi:10.1016/S0140-6736(11)61577-8 URL
[3]	Romero R, Dey SK, Fisher SJ. Preterm labor: one syndrome, many causes[J]. Science, 2014,345(6198):760-765. doi:10.1126/science.1251816 URL
[4]	刘騱遥, 漆洪波. 早产的预防与治疗[J/CD]. 中华产科急救电子杂志, 2018,7(4):193-196.
[5]	Lim KI, Butt K, Nevo O, et al. Guideline no. 401: sonographic cervical length in singleton pregnancies: techniques and clinical applications[J]. J Obstet Gynaecol Can, 2020,42(11):1394-1413. doi:10.1016/j.jogc.2019.06.002 URL
[6]	López Bernal A. Mechanisms of labour--biochemical aspects[J]. BJOG, 2003,110(Suppl 20):39-45.
[7]	胡娅莉. 早产临床诊断与治疗指南(2014)[J]. 中华妇产科杂志, 2014,49(7):481-485.
[8]	钟世林, 樊尚荣. 早产的流行病学[J]. 综合产科急救电子杂志, 2018,7(4):197-201.
[9]	Blencowe H, Cousens S, Oestergaard MZ, et al. National, regional, and worldwide estimates of preterm birth rates in the year 2010 with time trends since 1990 for selected countries: a systematic analysis and implications[J]. Lancet,2012, 379(9832):2162-2172. doi:10.1016/S0140-6736(12)60820-4 URL
[10]	Faron G, Balepa L, Parra J, et al. The fetal fibronectin test: 25 years after its development, what is the evidence regarding its clinical utility? A systematic review and meta-analysis[J]. J Matern Fetal Neonatal Med, 2020,33(3):493-523. doi:10.1080/14767058.2018.1491031 URL
[11]	Vintzileos AM, Visser GH. Interventions for women with mid-trimester short cervix: which ones work?[J]. Ultrasound Obstet Gynecol, 2017,49(3):295-300. doi:10.1002/uog.17357pmid:28266160
[12]	Li Q, Reeves M, Owen J, et al. Precocious cervical ripening as a screening target to predict spontaneous preterm delivery among asymptomatic singleton pregnancies: a systematic review[J]. Am J Obstet Gynecol, 2015, 212(2):145-156. doi:10.1016/j.ajog.2014.07.003 URL
[13]	Hernandez-Andrade E, Hassan SS, Ahn H, et al. Evaluation of cervical stiffness during pregnancy using semiquantitative ultrasound elastography[J]. Ultrasound Obstet Gynecol, 2013,41(2):152-161. doi:10.1002/uog.12344pmid:23151941
[14]	Du L, Zhang LH, Zheng Q, et al. Evaluation of cervical elastography for prediction of spontaneous preterm birth in low-risk women: a prospective study[J]. J Ultrasound Med, 2020,39(4):705-713. doi:10.1002/jum.15149 URL
[15]	Kwak DW, Kim M, Oh SY, et al. Reliability of strain elastography usingin vivocompression in the assessment of the uterine cervix during pregnancy[J]. J Perinat Med, 2020,48(3):256-265. doi:10.1515/jpm-2019-0370 URL
[16]	张冬梅, 侯莉, 刘杨, 等. 妊娠中期宫颈弹性参数联合宫颈长度对自发性早产的预测价值[J]. 中华超声影像学杂志, 2021,30(1):70-75.
[17]	Kuusela P, Jacobsson B, Söderlund M, et al. Transvaginal sonographic evaluation of cervical length in the second trimester of asymptomatic singleton pregnancies, and the risk of preterm delivery[J]. Acta Obstet Gynecol Scand, 2015,94(6):598-607. doi:10.1111/aogs.12622 URL
[18]	Hiersch L, Yogev Y, Domniz N, et al. The role of cervical length in women with threatened preterm labor: is it a valid predictor at any gestational age?[J]. Am J Obstet Gynecol, 2014,211(5):532,e1-e9.
[19]	Cho SH, Park KH, Jung EY, et al. Maternal characteristics, short mid-trimester cervical length, and preterm delivery[J]. J Korean Med Sci, 2017,32(3):488-494. doi:10.3346/jkms.2017.32.3.488 URL
[20]	Greco E, Gupta R, Syngelaki A, et al. First-trimester screening for spontaneous preterm delivery with maternal characteristics and cervical length[J]. Fetal Diagn Ther, 2012,31(3):154-161. doi:10.1159/000335686 URL
[21]	Serrano-Gómez SG, García-Morales MP. Cervical length in predicting preterm labor[J]. Ginecol Obstet Mex, 2011, 79(1):24-30. pmid:21966780
[22]	Miller ES, Tita AT, Grobman WA. Second-trimester cervical length screening among asymptomatic women: an evaluation of risk-based strategies[J]. Obstet Gynecol, 2015, 126(1):61-66. doi:10.1097/AOG.0000000000000864pmid:26241257
[23]	李菁华, 吴青青, 高凤云, 等. 经阴道超声实时宫颈组织弹性成像技术预测早产风险的应用价值[J]. 中华医学超声杂志(电子版), 2017,14(12):933-937. doi:10.3877/cma.j.issn.1672-6448.2017.12.011
[24]	Park HS, Kwon H, Kwak DW, et al. Addition of cervical elastography may increase preterm delivery prediction performance in pregnant women with short cervix: a prospective study[J]. J Korean Med Sci, 2019,34(9):e68. doi:10.3346/jkms.2019.34.e68 URL
